Automatic CNC Metal Channel Letter Bending Machine
BENDER CLASSIC CNC metal channel letter bender is the machine with full function: auto feeding, auto notching, auto flanging, auto bending and auto cutting. BENDER CLASSIC is the enhanced version of BENDER A. Besides all the functions of BENDER A, it can work with 2mm Aluminum.
All the mechanical structure, hydraulic system is designed to 2mm Aluminum.
Automatic CNC BENDER Function Comparison
|
Model |
Notch |
Flange |
V-slot |
Bend |
Cut |
Application |
|
MBM-BENDER-CLASSIC |
Bottom side |
√ |
√ |
√ |
√ |
Aluminum: 0.078"(2.0mm) Stainless Steel and Galvanized Steel:0.047"(1.2mm) |
Features
• 1. The interface of the software is very friendly. It can accept all kinds of DXF files such as created by ILLUSTRATOR, CASMATE, TYPE3, ARTCAM, FLEXISIGN, ENROUTER, CORELDAW etc.
• 2.The times and the depth of the v-slotting can be adjusted in the software. It’s very easy to use.
• 3. Hydraulic station controls the notching and flanging function. It’s very powerful and fast and the cutting surface is very smooth without any burrs.
• 4. Servo system controls the bending and slotting functions with high speed and high precision.
Remark:
The air pump is not included, please prepare it by yourself.The air pump should be above 0.6Mpa.
Detailed Pictures:
Samples

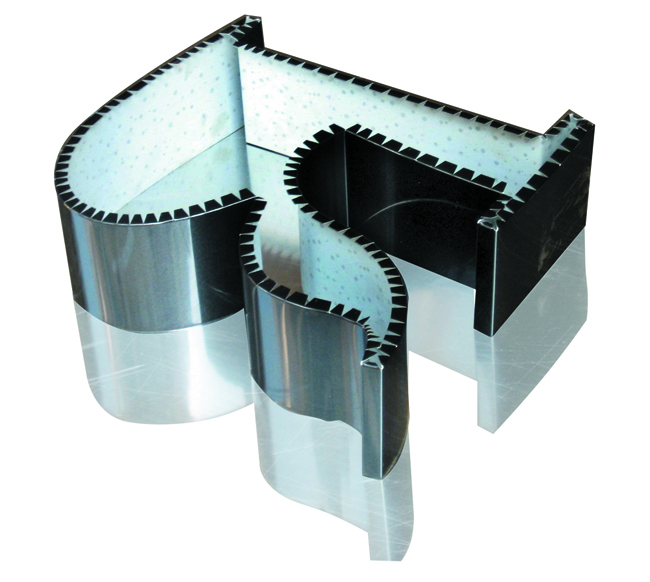

Aluminum Channel Letter
Notching and Flanging Letters
Supporting Computer Package:
Exhibition Gallery:
Ving Multifunction Automatic CNC Metal Channel Letter Bending Machine
Specifications
Material height: 70mm - 180mm (2.756in - 7.09in)
Material thickness: 0.6mm - 2.0mm (0.024in - 0.0787in)
Width of flange: 6mm-14mm (0.24in - 0.55in)
Notch depth: 10mm - 12mm (0.39in - 0.47in)
Notch size: 30º and 105º
Bending angle: 0º - 120º degree
Feeding speed: 36m / min (118ft / min)
Min radius for circle: R10
Cutting: Air - oil boost up cylinder
Air: 90psi (6bar) at 1cfm
Power: 220V, 3Phase, 60 HZ, 15Amp
Machine Physical layout: 3700mm x 1200mm x 1500mm (146in x 47in x 59in)
Net weight: 700kg (1540lbs)
Packing Size: 1980mm x 1030mm x 1500mm (78in x 40.6in x 59in)
Gross weight: 860kg (1892lbs)
Remark:
The air pump and computer is not included, please prepare it by yourself.The air pump should be above 0.6Mpa and computer should be XP or W7 32 / 64 - bit with PCI slot.
If you want include computer, please choose "with industry computer".
Ving Multifunction Automatic CNC Metal Channel Letter Bending Machine
Machine Physical layout: 146in x 47in x 59in(3700mm x 1200mm x 1500mm)
Net weight: 1540lbs(700kg)
Packing Size: 78in x 40.6in x 59in(1980mm x 1030mm x 1500mm)
Gross weight: 1892lbs(860kg)
Operation of Multifunction Automatic CNC Metal Channel Letter Bending Machine
